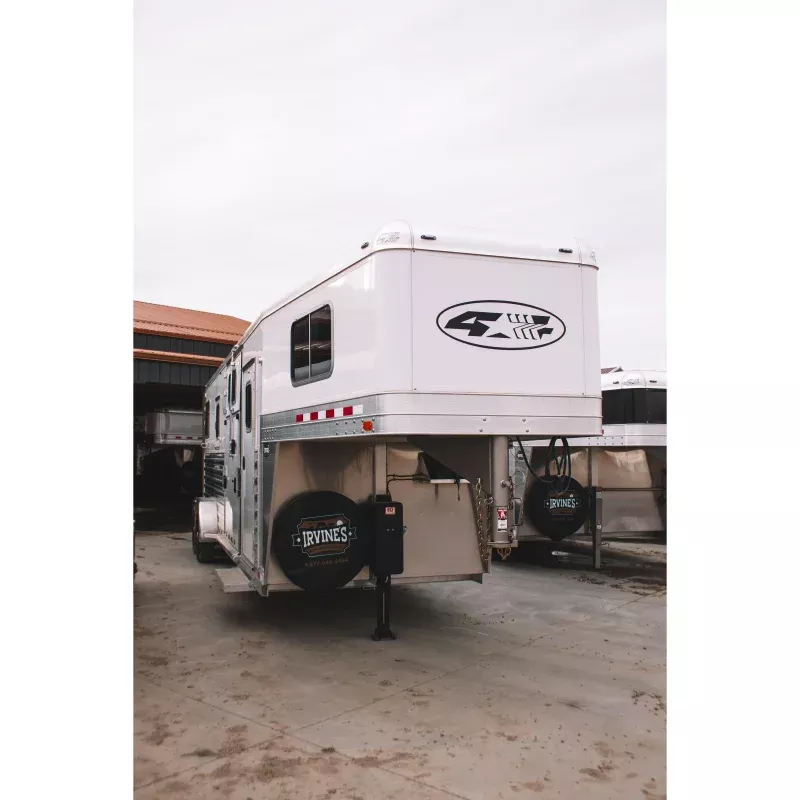

White – 43544
8′ Tall
6’10” Wide
2 5/16″ Adjustable Coupler
10,000lb Hydraulic Single Landing Leg Jack w/ Battery Box & Battery Wired Up
96″ Tapered Gooseneck w/ Reinforcementw/ 19″ x 34″ Windows
Polished Corner Caps
Pre-Painted White Exterior on Smooth Aluminum Full Height and Length
5′ Front Dressing Room w/ 12″ Deep x Full Width Single Lid Carpeted Boot Box @ Drop
Drop Height 50 7/8″
Dressing Room Door w/ Window at Curbside w/ Fold Down Step
Carpet Gooseneck Floor, Drop, and Floor of Dressing Room
(1) Walk-Thru Door w/ Window w/ Single Butterfly Latch Streetside @ Bulkhead Wall w/ Fold Down Step
60″ Tall x 60″ Wide Easy Lift Side Ramp w/ Dutch Door w/ Window at Curbside to Start Approx. 74″ B.O.D. w/ Single Pipe Hardware
Drop Down Windows w/ Drop Down Window Bars at Head of Stalls Curbside and Streetside
24″ x 36″ Double Sliding Window at Hip Each Horse
60″ Tall x Full Width Easy Lift Ramp w/ Rear Dutch Doors w/ Windows
18″ Clear Walk-Thru Door in Bulkhead Wall to Start 8″ off Curbside Wall
(1) Quiet Ride Rolling Divider w/ Wither Shield & Attached Head Shield Ride w/ Additional Setting @ Streetside Wall
(2) Full Height Quiet Ride Stud Doors w/ Air Flow (Bars) in Top Section 162″ B.O.D. – Curbside Stud Door Hinged @ Curbside Wall & Streetside Stud Door Hinged @ Streetside Wall – Doors to Swing in Both Directions
Smooth Ribbed Aluminum Floor
Floor Mats in Horse Compartment Only
Insulated & Double Walled on Side Walls of Horse Compartment
Rubber Lined Walls in Horse Compartment
(4) Two-Way Roof Vents
(5) Inside Tie Rings
(3) Outside Tie Rings – (1) @ Curbside, (2) @ Streetside
(2) Quite Ride Breast Bars
(2) Quite Ride Butt Bars
(3) L.E.D. Dome Lights – (1) in Dressing Room, (2) in Horse Area
(2) Permanent Saddle Racks @ Streetside Dressing Room
(10) Bridle Hooks on Bulkhead Wall Toward Streetside
(1) Brush Tray on Dressing Room Door
(1) Blanket Bar @ Bulkhead Wall Toward Streetside
(2) 11″ Awning Lights – (1) @ Rear, (1) @ Curbside Side Ramp
(2) 7,000lb Torsion 102″ Axles w/ Electric Brakes
(7) 235/ 80R16 10-Ply Tires
16″ Aluminum Wheels
8 Bolt Hubs
High Turn Signals
L.E.D. Lighting
D.O.T. Tape
Shipping/Curb/GV Weight (kg) – 2285 KG
G.V.W.R. (kg) – 6344 KG
